Describes: AIRFLOW PROBE PRODUAL PP-PK R335, PRODUAL TRANSMITTERS, AIR FLOW TRANSMITTERS PRODUAL, AIR FLOW SENSOR PRODUAL, AIR FLOW PROBE.
The PRODUAL PP-PK R335 airflow probe is designed to measure air velocity, flow rate, and volume inside ventilation ducts.
Manufactured by PRO-DUAL (Finland), the PRODUAL airflow probe features multiple sensing points to capture both static and total pressure, offering up to 2.5 times signal amplification. It ensures accurate airflow measurements even at low speeds down to 1.0 m/s (200 fpm).
The airflow probe includes bevel-cut sensor points for optimal alignment with airflow and consistent readings. It accepts 1/4” OD tubing and is typically used with the DPT-FLOW differential pressure transmitter for accurate volume or velocity measurement.

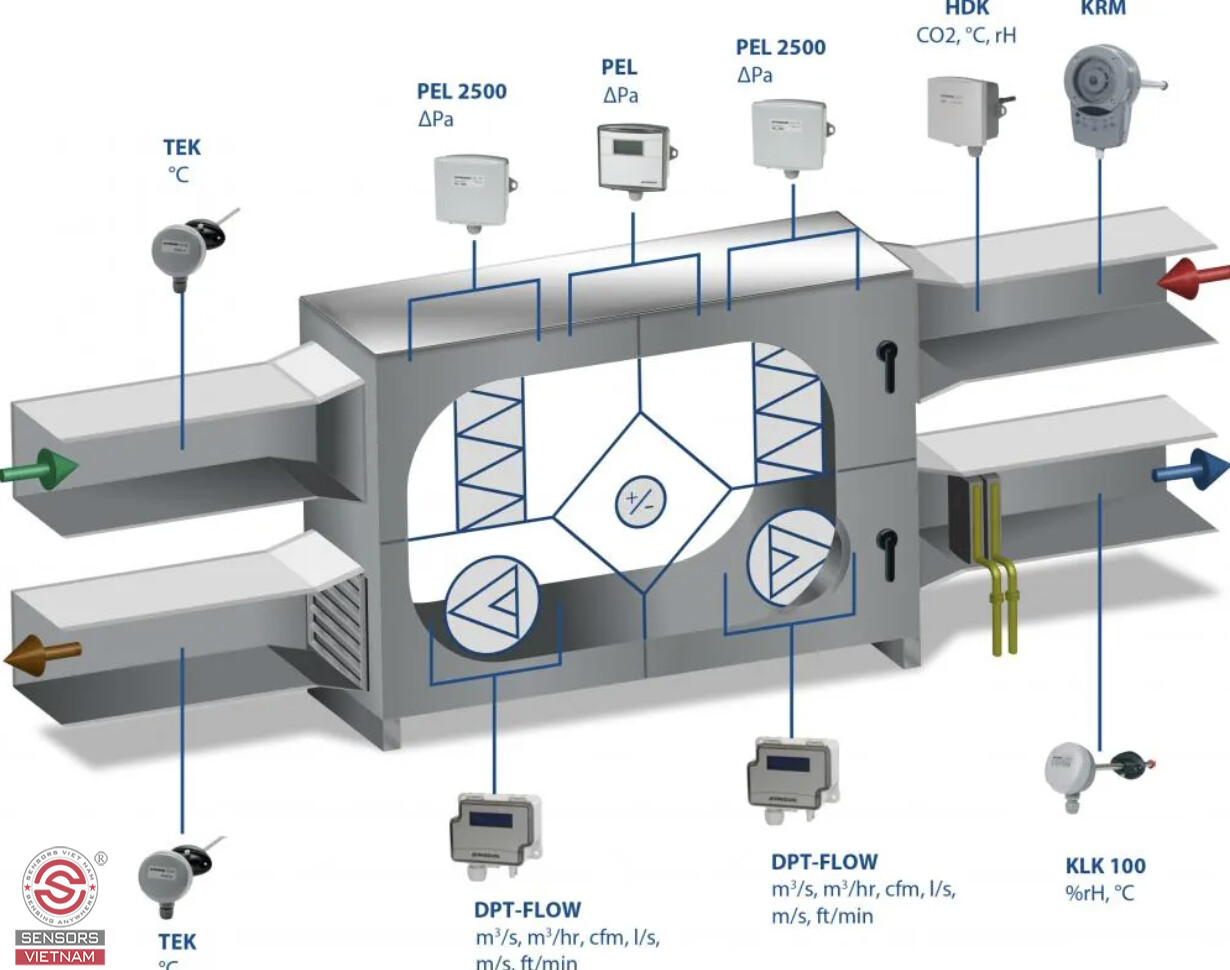

The PP-PK R335 is suitable for square, rectangular, and round ducts, with corresponding models selected based on duct dimensions. With a simple installation process and high reliability, it is an economical choice for HVAC systems.
Sensors Vietnam supplies the genuine PRODUAL PP-PK R335 airflow probe - an ideal solution for airflow monitoring and control in industrial and building ventilation systems.
Technical specifications of PRODUAL PP-PK R335 airflow probe:
• Hose connectors: Ø7.5 mm barbed brass
• Medium: Dry air or non-aggressive gas
• Mounting: Screws on duct; 350 mm+ versions include Ø6 mm stud, washer, and nut
• Probe material: T3015 aluminum
• Mounting plate: Mild steel
• Gasket: Expanded foam
• Operating temperature: 5...95 °C
• Humidity: 0...95% RH (non-condensing)
• Storage temperature: -20...95 °C
• Origin: PRODUAL/Finland
